Jelly Crimp Connectors

Gel-filled IDC splice, repair, and tap connectors for copper telephone and signal wire — insert the wires and crimp; the IDC contact cuts through the insulation and the gel seals each joint against moisture. Mintel produces the standard color-coded range: UY, UY2, UR, UR2, UB2A, and UG. Mintel still manufactures the complete range and supplies it in bulk to distributors, wholesalers, retailers, importers, and project buyers — direct from the factory, not through a reseller.

These products are also called jelly connectors or jelly crimps and may be listed as lock joint connectors. The range includes gel-filled butt splice connectors and 2- or 3-wire connectors for repair and tap.

6 models · Solid copper wire, 26–19 AWG (range varies by model) · In production · Free samples (shipping only)

Overview

What is a jelly crimp connector?

A jelly crimp connector is a gel-filled IDC (insulation displacement contact) splice connector. The IDC blade pierces the wire insulation to contact the conductor, and the gel fill protects the joint against moisture. Color indicates function.

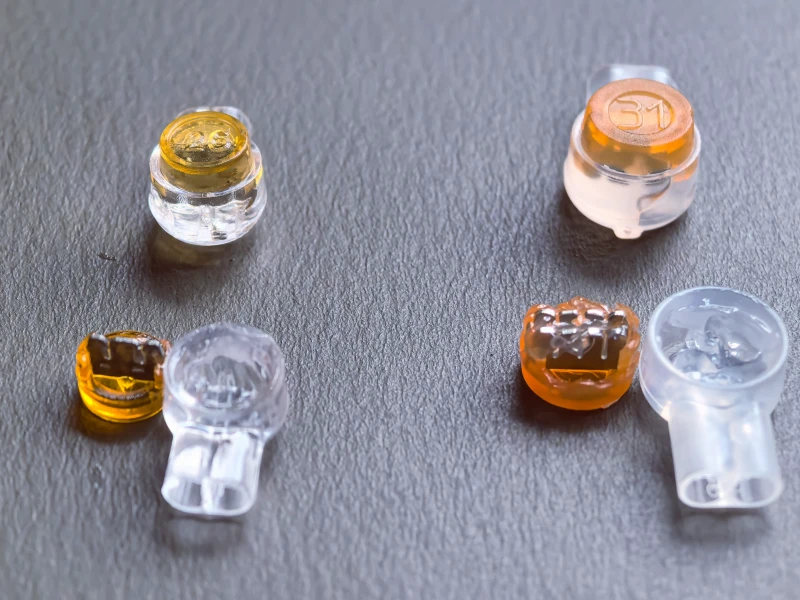

UY and UY2 jelly crimp connectors open cap showing internal gel and IDC blade

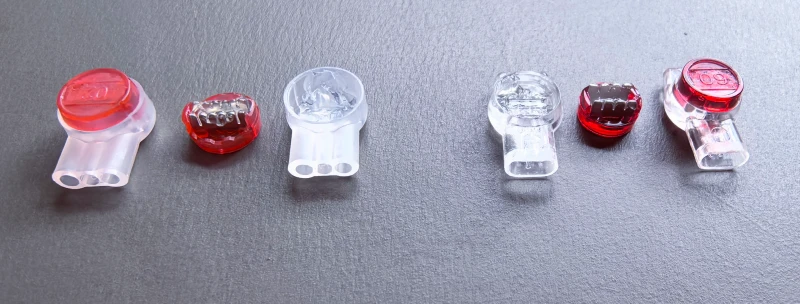

UR and UR2 jelly crimp connectors open cap showing internal gel and IDC blade
  • Yellow — UY / UY2: 2-wire inline splice.
  • Red — UR / UR2: 2-wire or 3-wire repair and tap (dual IDC).
  • Blue — UB2A: bridge tap (T-bridge; taps onto a through-wire without cutting it).
  • Green — UG: butt + tap splice; taps an existing through-conductor without interrupting service.

Selection table

Range / selection

Choose by splice function, then confirm wire range and insulation O.D. in the table below.

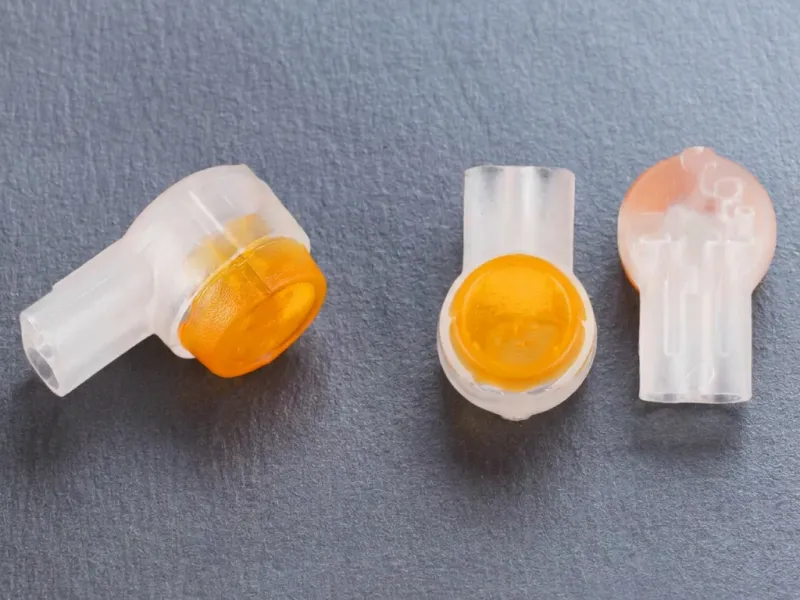

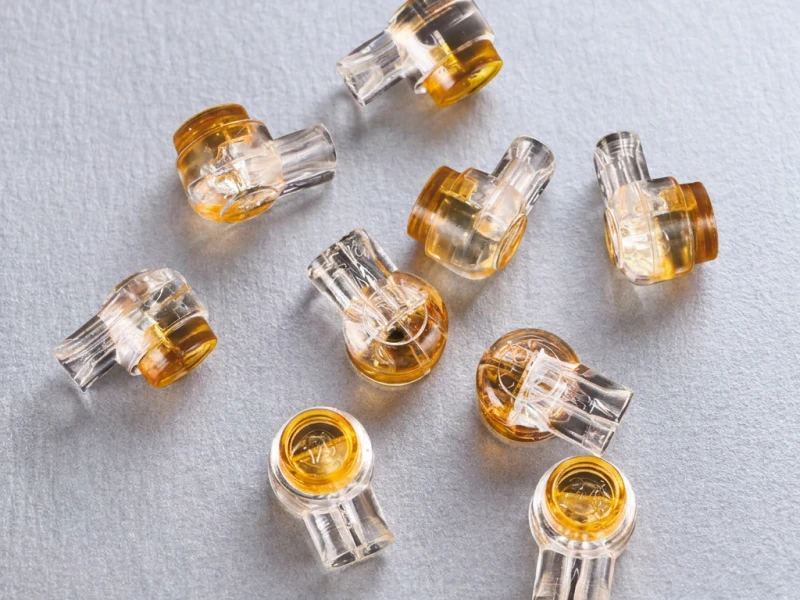

UY / UY2

2-wire inline splice

UY: 0.4–0.7 mm (26–22 AWG), max insulation O.D. 1.52 mm. UY2: 0.4–0.9 mm (26–19 AWG), max 2.08 mm.

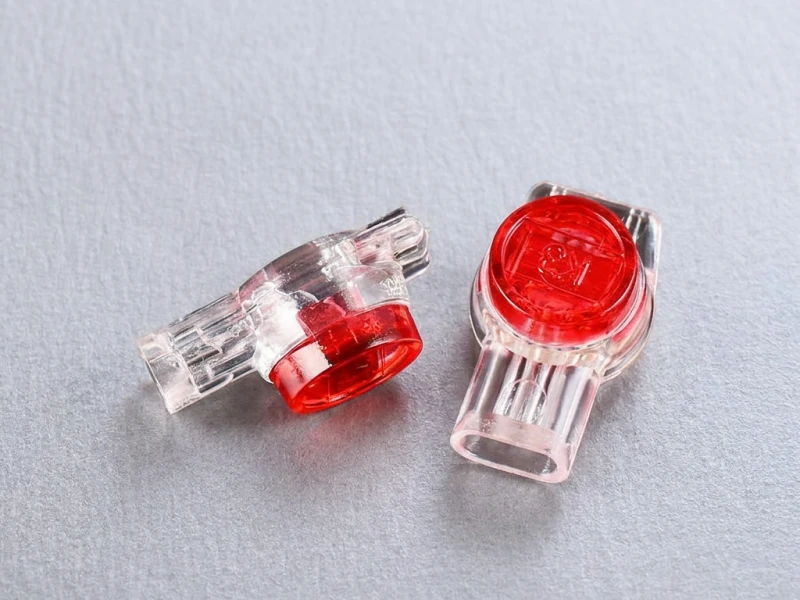

UR / UR2

2- or 3-wire repair and tap

Same wire range. Max insulation O.D. is 1.52 mm for UR and 2.08 mm for UR2.

UB2A

Bridge tap

UG

Butt + tap

No service interruption

UY2D dry indoor variant available by order.

ModelColorFunctionWire countWire rangeMax insulation O.D.Gel
UY View specs & packaging Yellow 2-wire inline splice 2 0.4–0.7 mm / 26–22 AWG 1.52 mm Yes
UY2 View specs & packaging Yellow 2-wire inline splice (larger) 2 0.4–0.9 mm / 26–19 AWG 2.08 mm Yes
UR View specs & packaging Red / translucent 2/3-wire repair + tap 2 or 3 0.4–0.9 mm / 26–19 AWG 1.52 mm / 0.060 in Yes
UR2 View specs & packaging Red / translucent 2/3-wire repair + tap (larger) 2 or 3 0.4–0.9 mm / 26–19 AWG 2.08 mm / 0.082 in Yes
UB2A Blue Bridge tap 2-conductor 0.4–0.9 mm / 26–19 AWG 2.08 mm Yes
UG Green Butt + tap splice (no service interruption) 2 (butt + tap) Butt 0.4–0.9 mm / 26–19 AWG; Tap 0.4–0.7 mm / 26–22 AWG Butt 1.54 mm; Tap 1.12 mm Yes
Technical notes
  • UR — PC / Polycarbonate body, dual IDC contacts, gel-filled, red / translucent.
  • UR2 — PP / Polypropylene body, dual IDC contacts, gel-filled, red / translucent.

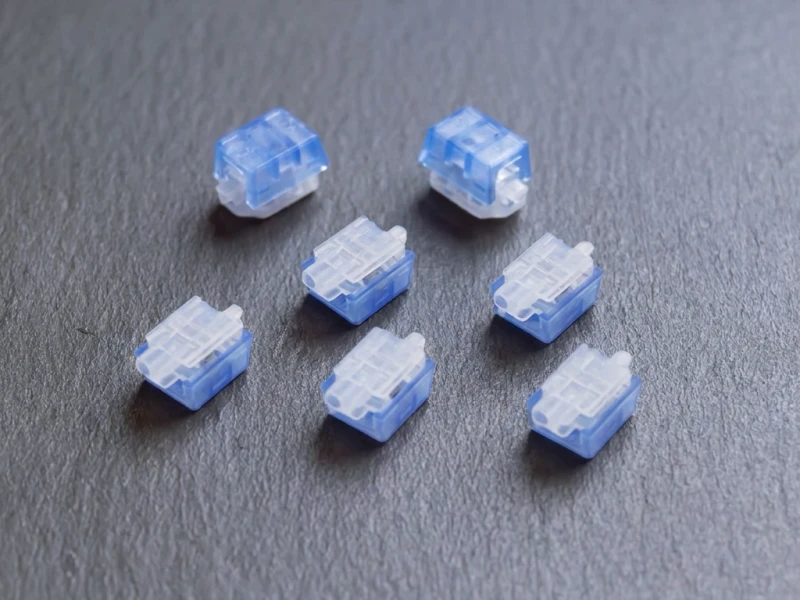

  • UB2A — blue gel-filled bridge tap connector; covered on this category page, no standalone page. A T-bridge connector that taps onto a through-wire without cutting it (single-blade IDC).

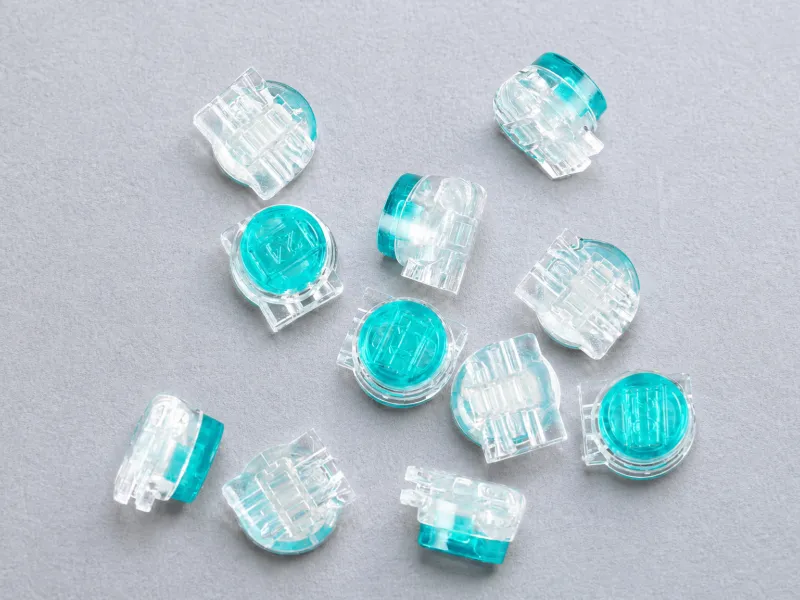

  • UG — green gel-filled butt + tap connector; covered on this category page, no standalone page. Taps into an existing through-conductor without interrupting service; PC / Polycarbonate body, U-shaped tin-plated phosphor bronze IDC contact; for PIC-filled and PIC-unfilled solid-copper cable; no stripping needed for solid copper.

Model selection

Choose a jelly crimp connector model

See the UY, UY2, UR or UR2 model page for detailed specs and packaging. UB2A and UG specs are in the selection table above.

Applications

Where jelly crimp connectors are used

For moisture-protected splices, repairs and taps in copper telephone and signal wire — when wire size and insulation O.D. match the connector.

Telecom maintenance

  • Legacy telephone repair
  • Signal-pair cable repair

Low-voltage signal wiring

  • Alarm systems
  • Access control
  • CCTV
  • Intercom / door entry

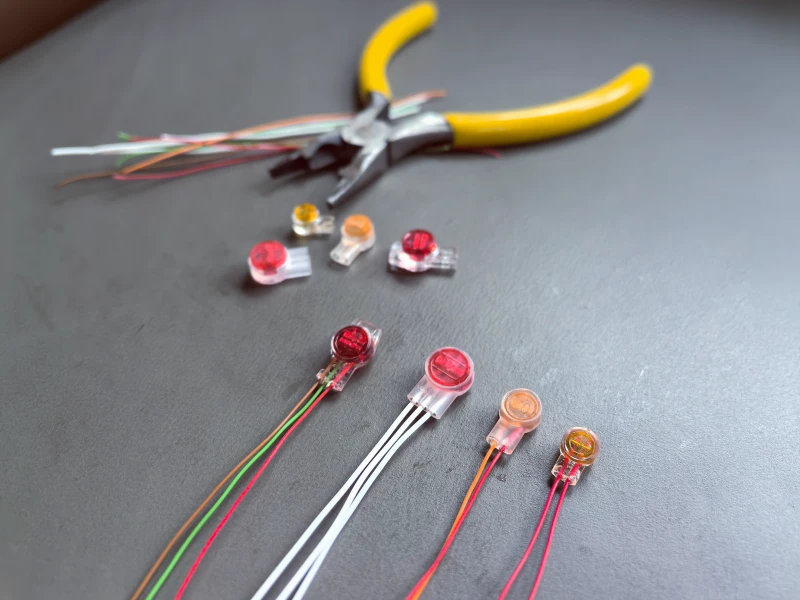

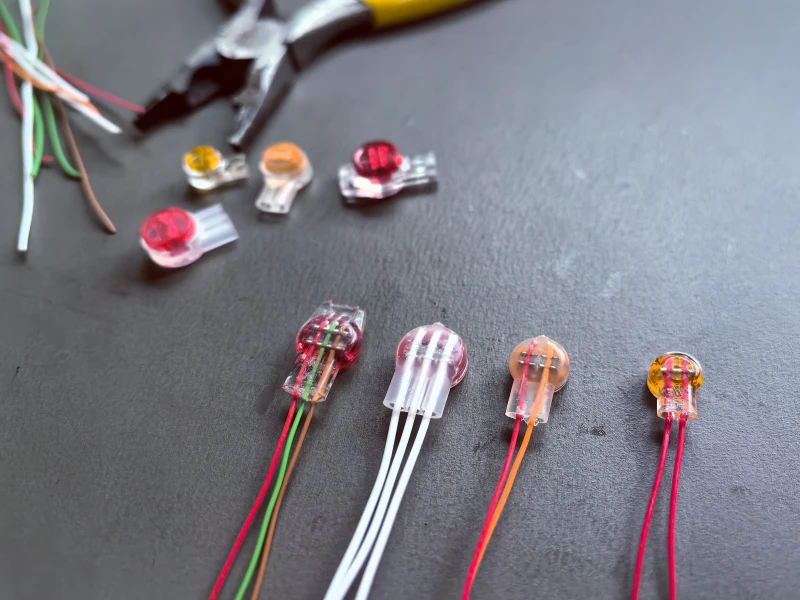

UY UY2 UR and UR2 jelly crimp connectors crimped with wires front view

Confirm wire size, insulation O.D. and installation conditions before ordering.

Factory supply

From trial orders to volume supply

Factory-direct jelly crimp connector supply for distributors, wholesalers, retailers, importers, brand owners and project buyers.

  • Distributors
  • Wholesalers
  • Retailers
  • Importers
  • Brand owners
  • Project buyers
Mintel product assembly workshop for copper wire connectors
  • Founded 2012
  • Family know-how since 1986
  • Quality management system certified to ISO 9001:2015
  • RoHS and REACH documentation can be arranged for qualified orders.

Ongoing production

All six Jelly models remain in production.

Small B2B orders

No fixed MOQ for B2B orders. Small quantities can be shipped by air.

Bulk, OEM & private label

Scale to repeat volume and neutral or custom packaging by qualification.

For a quotation, send:

  • Models & quantities
  • Wire range & max O.D.
  • Application
  • Packaging
  • Destination & annual volume
  • Documents
Request a quote
Datasheets are available on request.
Order qualification details

Mintel manufactures and ships this range directly. UY2D is available by order. OEM, private-label and neutral or custom packaging remain subject to qualification. We do not sell single pieces for personal use.

FAQ

Buyer questions

What is a jelly crimp connector?

A gel-filled IDC splice connector — insert the wires and crimp; the IDC contact pierces the insulation and the gel seals the joint against moisture.

UY or UY2?

Both are yellow 2-wire inline splices. UY is the compact size (0.4–0.7 mm / 26–22 AWG, 1.52 mm OD); UY2 is larger (0.4–0.9 mm / 26–19 AWG, 2.08 mm OD).

UR or UR2?

Both are red translucent gel-filled 2/3-wire repair and tap connectors with dual IDC contacts. UR uses PC / Polycarbonate and supports 1.52 mm / 0.060 in O.D.; UR2 uses PP / Polypropylene and supports 2.08 mm / 0.082 in O.D.

UY or UR?

UY (yellow) is a 2-wire splice only; UR (red) is a 2/3-wire repair and tap connector.

Are these gel-filled?

Yes — gel-filled IDC construction helps protect each joint against moisture.

Are these still in production?

Yes — Mintel continues to manufacture UY, UY2, UR, UR2, UB2A, and UG.

Do you supply retailers and wholesalers?

Yes — bulk factory supply for distributors, wholesalers, retailers, importers, and project buyers, with OEM / private-label / neutral packaging by qualification. We do not sell personal one-piece orders.

Do you sell small quantities?

Yes. There is no fixed MOQ for B2B orders, and small quantities can be shipped by air. We do not sell single pieces for personal use.

Do you offer samples?

Yes. Samples are free. You only pay shipping.
